SDG 8600 Series
Unlock multigigabit Wi-Fi experiences
Our 2nd generation SDG 8600 Series of Wi-Fi 6 and 6E devices are carrier-class, true multigigabit residential gateways and mesh satellites that combine power and energy efficiency in a compact footprint 60% smaller than other carrier-grade residential gateways. Supporting 2.5GbE on both the LAN and WAN, these high-performance gateways are ideal for premium multigigabit service delivery. What’s more, the SDG 8600 Series supports both Intellifi and Plume managed Wi-Fi platforms, as well as standard TR-369.

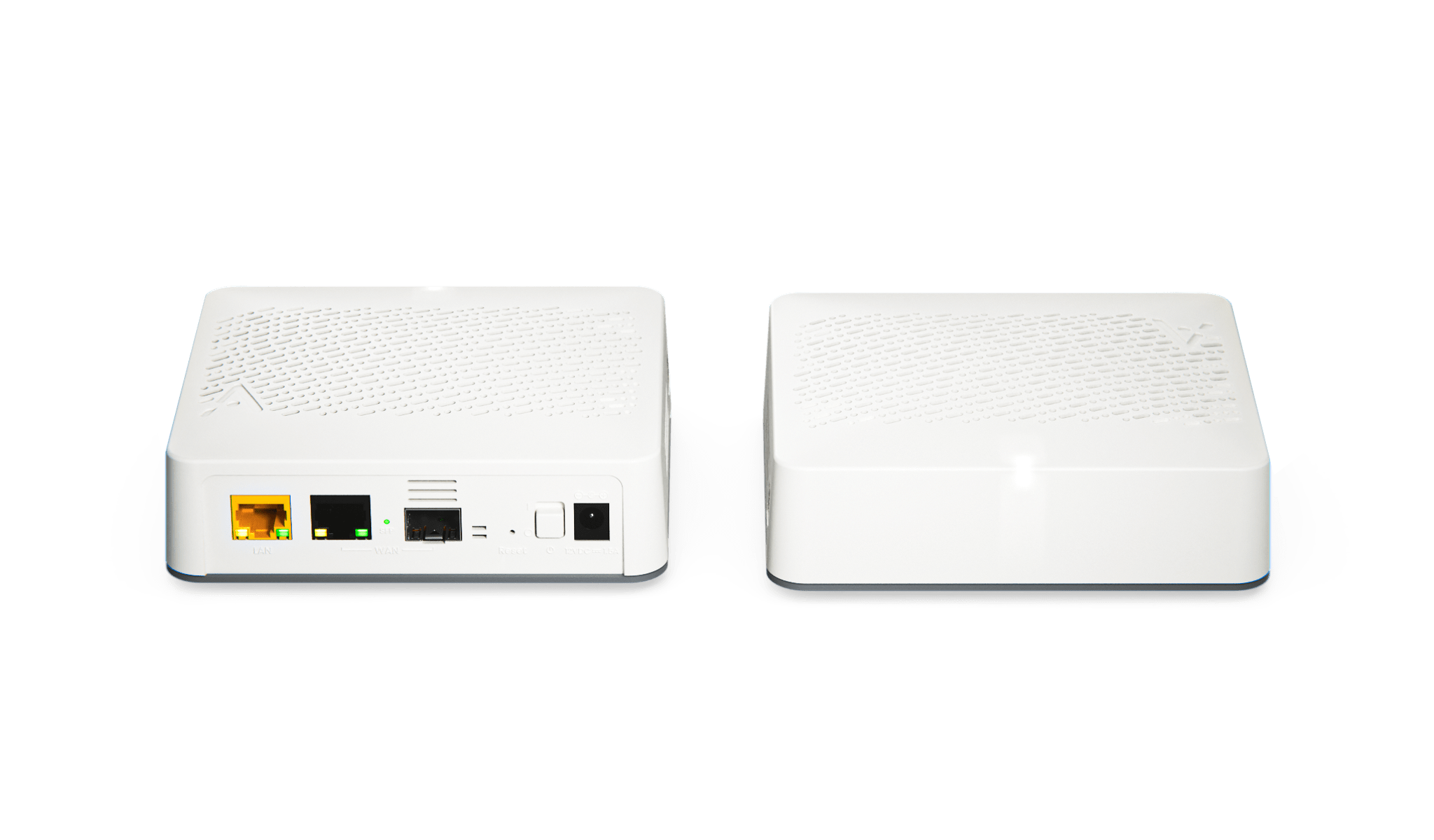

SDG 8612 (Wi-Fi 6)
Our SDG 8612 is a carrier-class, 802.11ax (Wi-Fi 6) residential gateway with dual-band mesh, 2.5GbE WAN and 2.5GbE LAN ports, and additional 3x 1GbE LAN ports. With 4x4 radios on 2.4GHz and 5GHz bands and support for 160MHz channels, it’s ideal for premium multigigabit services. The SDG 8612 is USB-C powered.
SDG 8614 (Wi-Fi 6, fiber)
Our SDG 8614 is a carrier-class, 802.11ax (Wi-Fi 6) fiber residential gateway with dual-band mesh, with a 2.5G SFP+ for WAN, and a 2.5GbE and 3x 1GbE LAN ports. With 4x4 radios on both 2.4GHz and 5GHz bands and support for 160MHz channels, it’s built to deliver premium multigigabit services. The SDG 8614 is USB-C powered.
SDG 8622 (Wi-Fi 6, Triband)
Our SDG 8622 is a carrier-class, 802.11ax (Wi-Fi 6) Ethernet residential gateway and tri-band mesh satellite with 2.5GbE WAN and 2.5GbE LAN ports. It has 4x4 radios on the 2.4GHz and 5GHz bands with 160MHz support, and a dedicated 4x4 radio for mesh backhaul, for whole-home multigigabit services. The SDG 8622 is USB-C powered.

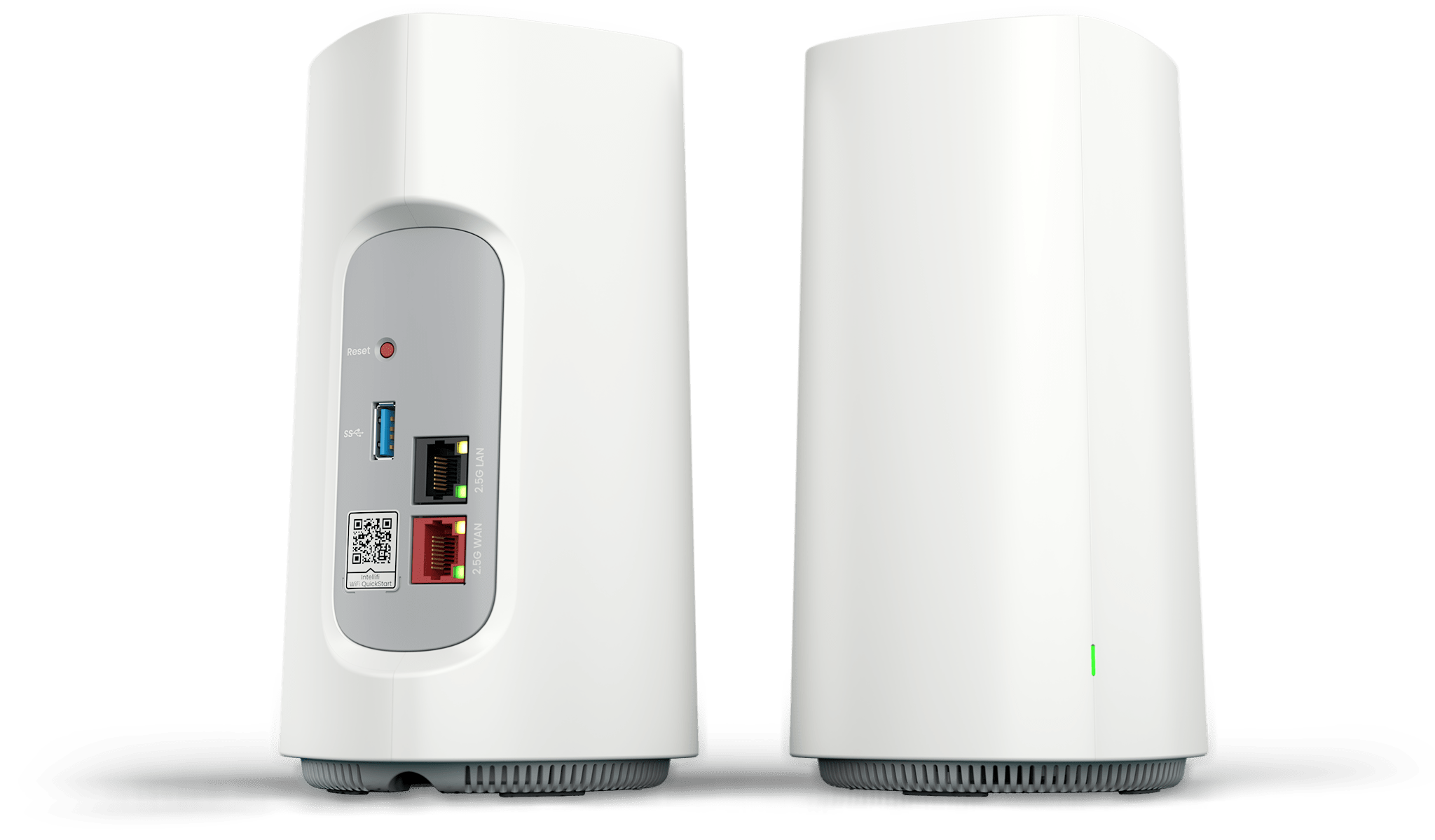

SDG 8632 (Wi-Fi 6E, Triband)
Our SDG 8632 is a carrier-class, 802.11ax (Wi-Fi 6E) residential gateway and tri-band mesh satellite, with 2.5GbE WAN and 2.5GbE LAN ports, with 6GHz and 160MHz channels support. It has 4x4 radios on the 2.4GHz and 5GHz bands, and a dedicated 4x4 radio on the 6GHz band for multigigabit mesh backhaul for whole-home multigigabit services. The SDG 8632 is USB-C powered.
Feature | SDG 8612 | SDG 8614 | SDG 8622 | SDG 8632 |
---|---|---|---|---|
Wireless standard | Wi-Fi 6 (802.11ax) |
Wi-Fi 6 (802.11ax) |
Wi-Fi 6 (802.11ax) | Wi-Fi 6E (802.11ax) |
Mesh | Dual-band | Dual-band | Tri-band | Tri-band |
Wi-Fi config | 4x4 (2.4GHz) 4x4 (5GHz) |
4x4 (2.4GHz) 4x4 (5GHz) |
4x4 (2.4GHz) 4x4 (5GHz) 4x4 (5GHz, backhaul) |
4x4 (2.4GHz) 4x4 (5GHz) 4x4 (6GHz, backhaul) |
Application | Gateway | Gateway | Gateway Mesh satellite |
Gateway Mesh satellite |
WAN ports | 2.5GbE | 2.5G SFP+ | 2.5GbE | 2.5GbE |
LAN ports | 1x 2.5GbE 3x 1GbE |
1x 2.5GbE 3x 1GbE |
1x 2.5GbE | 1x 2.5GbE |
Managed Wi-Fi platforms | Intellifi Plume TR-369 |
Intellifi Plume TR-369 |
Intellifi Plume TR-369 |
Intellifi Plume TR-369 |
